Marine winch&windlass

Supply marine mooring winch, towing winch, marine hydraulic anchor windlass and mooring capstan

We can supply kinds of marine winch,windlass and capstan with following details:

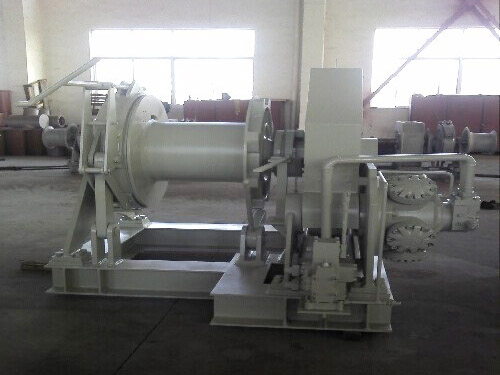

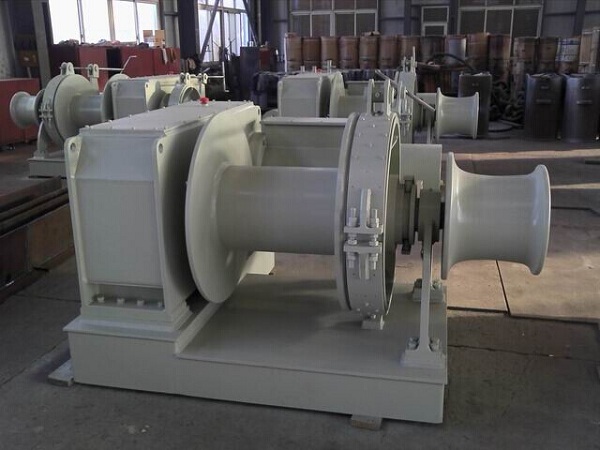

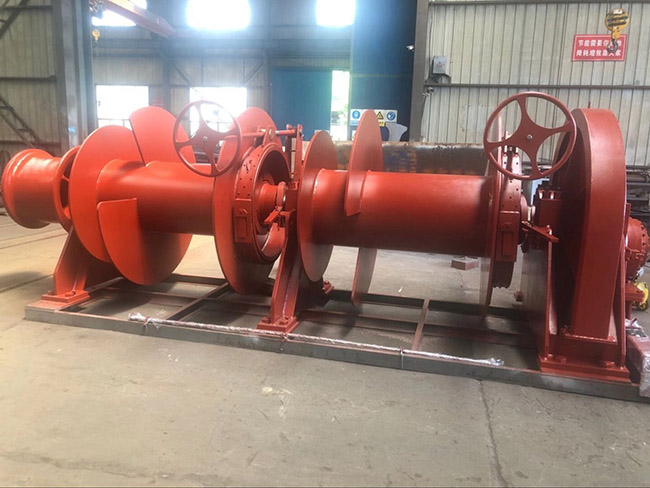

Marine mooring and towing winch:

We can supply a wide range of towing winches with following details:

Driven Mode: Electric or hydraulic drive
Configuration: Single or double drum, linear or waterfall
Rope: Fiber rope drum or steel wire rope drum
Rated pull: From 5 to 200 tones (1st layer)
Clutch: Hydraulic operated
Brake: Manually operated band
Control: Local and/or remote control

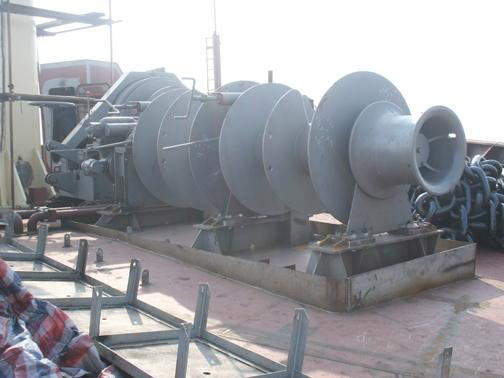

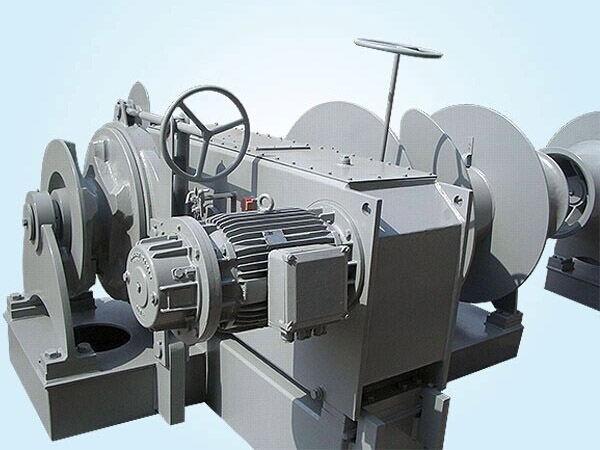

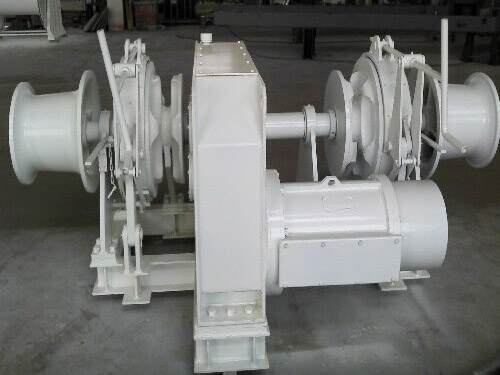

II Marine anchor windlass:

We can supply the marine windlass with following details :
1.The chain dia. Is 24/26 to 112/114 (mm)
2. The working loas is 24.5/28.7 to 595.9/617.3 (kN)
3. The working speed is over 9 (m/min)
4. The mooring pull is 8 to 350 (kN)
5. The drum capacity is ø 11× 100 to ø 48× 200 (m)

III. Marine hydraulic and electric capstan

We can supply the marine mooring capstan with following details:
1. The chain diameter is 11/14 to 58/60 (mm)
2. The working load is 5.9/7.4 to 133/153 (mm)
3. The anchoring speed is more than 12 (m/min)
4. The warping load is 5 to 60 (kN)
5. The warping speed is more than 10 (m/min)
6. Wire dia. Is 11 to 26 (mm)
7. Driven: Electric or hydraulic

Certificates: ABS, GL, LR, BV, RMS, NK, CCS, etc. can be provided.

Please contact with us for any of your inquiry!
